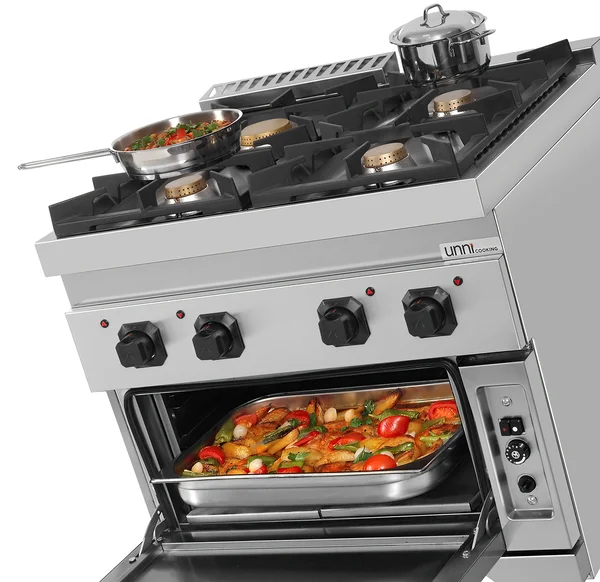

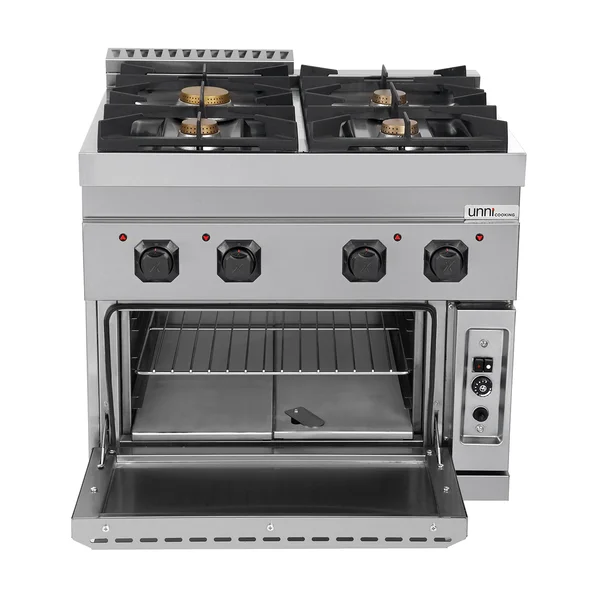

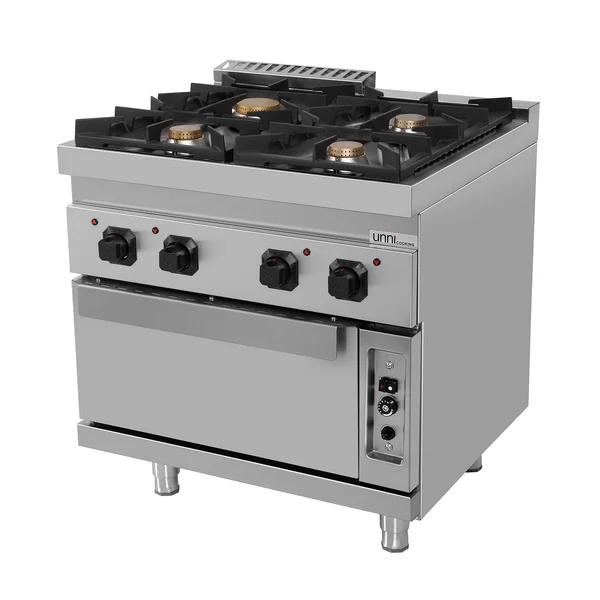

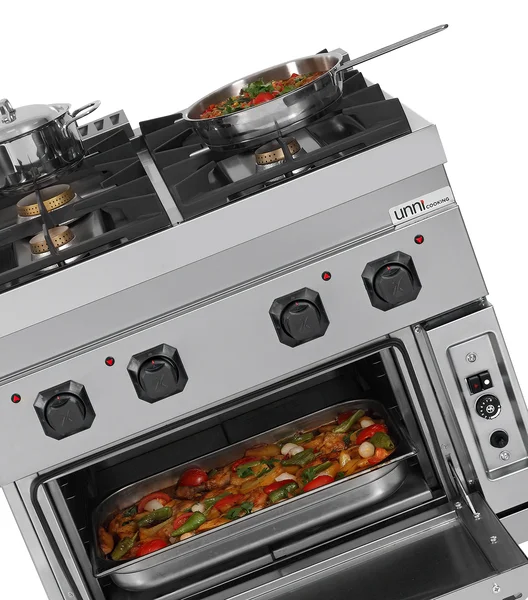

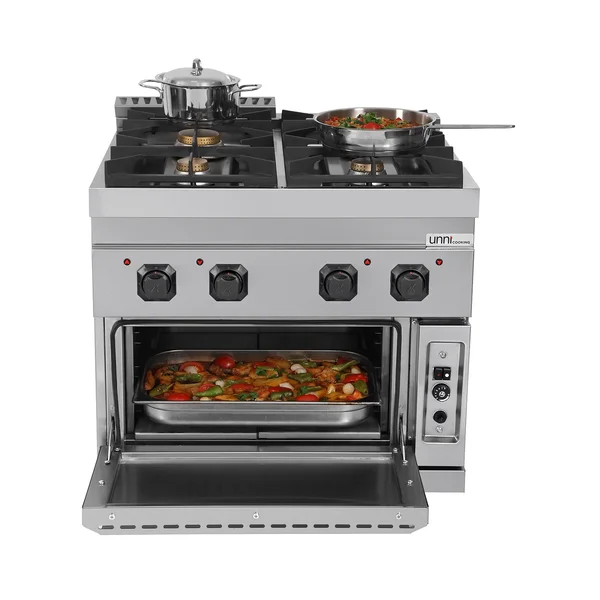

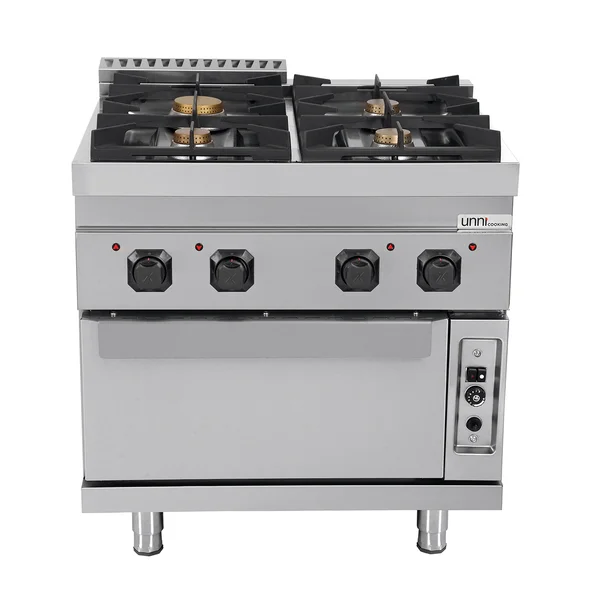

Gas Range with Gas Oven – 4 Burners – G70FG020

Oven

• Type: Gas

• Heating method: Bottom heat

• Multifunctional: No

• Capacity: 93 litres

• Number of racks: 2

• Rack spacing: 80 mm

• Temperature range: 140–300 °C

• GN compatibility: 2/1 GN

• Internal oven dimensions (W × D × H): 565 × 635 × 260 mm

• Vapour outlet: Yes

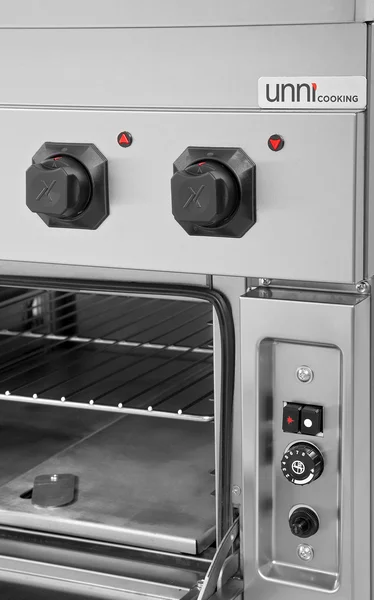

• Ignition: Piezo ignition

• Ignition type: Manual

• Pilot flame: Yes

• Oven power output: 6.5 kW

Gas connection

• Suitable for:

  • Natural gas H (20 mbar)

  • Natural gas L (20 mbar)

  • LPG (50 mbar)

• Includes nozzles for natural gas and LPG

Cooking section

• Burner type: Gas

• Number of burners: 4

• Burner output: 3 × 6.5 kW and 1 × 9 kW

• Cast iron grate dimensions: 600 × 360 mm

• Design: Upright (freestanding) unit

• Operating mode: Gas

Construction & finish

• Series: 700

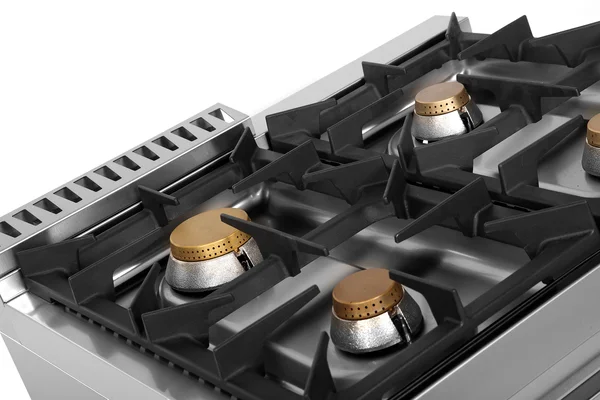

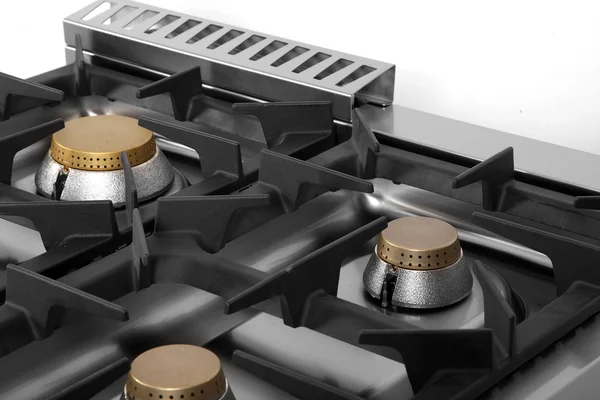

• Heavy-duty cast iron grates

• Burners with removable drip trays

• Height-adjustable feet

• Adjustable height: 850–900 mm

Technical data

• Total connected load: 35 kW

Dimensions

• External dimensions (W × D × H): 800 × 700 × 850–900 mm
